Package Transportation

Grip Methods

There are a couple of ways a drone can hold on to a given package. During our research, we explored the following systems:

• Mechanical Grippers or Claws, where servo motors are used to open and close a gripping mechanism. While this approach yields a good in-flight performance for irregular or non-metallic items, pickup also requires accurate alignment to properly connect with any payload.

• Fixed Hooks or Clips, where the drone flyes by the package and hooks into it, effectively picking it up upon flight. This allows for passive pickup and drop-off, without electronic controls. However, the minimalistic design requires accurate alignment and properly prepared packages with possibilities to hook into. This also results in the drone not being able to drop off the package mid-flight.

• Electromagnetic Systems, where an electromagnet is used to attach to magnet-fitted packages. The magnet is controlled via the drone and can be turned on to hold on to the package or turned off in order to drop the package. While this approach is energy intensive, it requires less flight accuracy when pickup or drop-off.

Due to our not existing flight skills combined with the fast pickup and drop-off, we decided to build a solution using an electromagnet.

Grip System

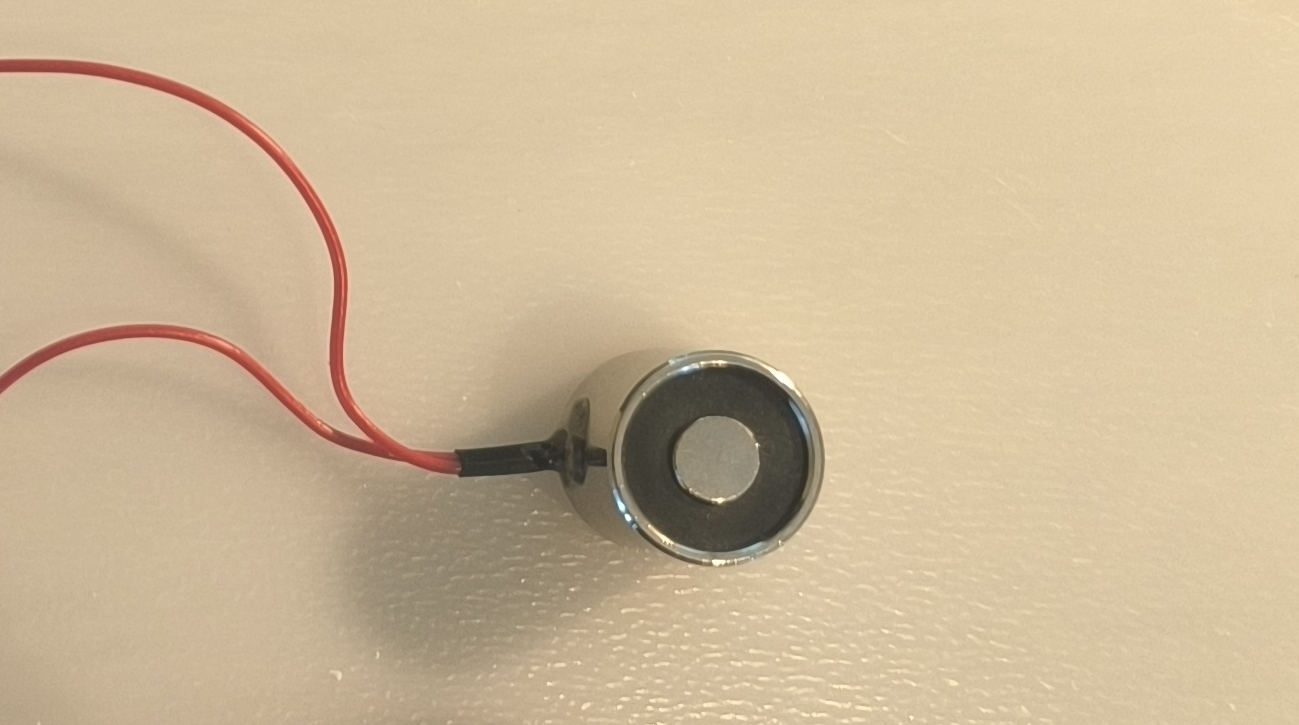

For our purposes, we chose an electromagnet with a pulling strength of ~25 newtons, yielding in a theoretical grip strength of:

However, factors like surface area contact between the magnet and object, air gaps or misalignment and flight winds reduce the effective strength significantly.

The electromagnet is powered with continuous 5V DC and pulls ~250mA while operating. As an electromagnet of this magnitude has no electronic polarity, there is no V+ or V-, just two cables that we can connect in either direction.

As the pickup and drop-off shall happen on command, we need to connect it to our on-board Raspberry Pi Zero computer. Unfortunately, the 5V rail of such is not capable of continuously delivering 1.25W, especially considering an electromagnet tends to spike energy consumption when turned on.

The solution: a Relay

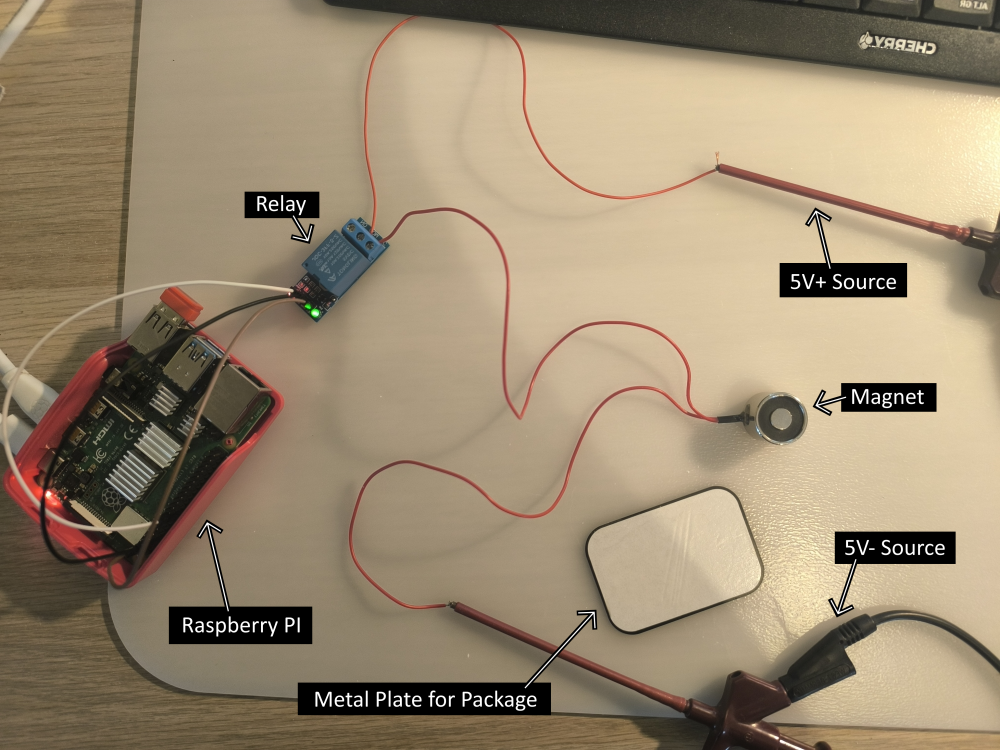

A Relay is an electronic component that controls an isolated electronic circuit with inputs from another. As our Raspberry Pi is already powered by a 5V DC source, we can reuse the same source to power the electromagnet and toggle the connection via the low-amperage GPIO output of the Raspberry Pi.

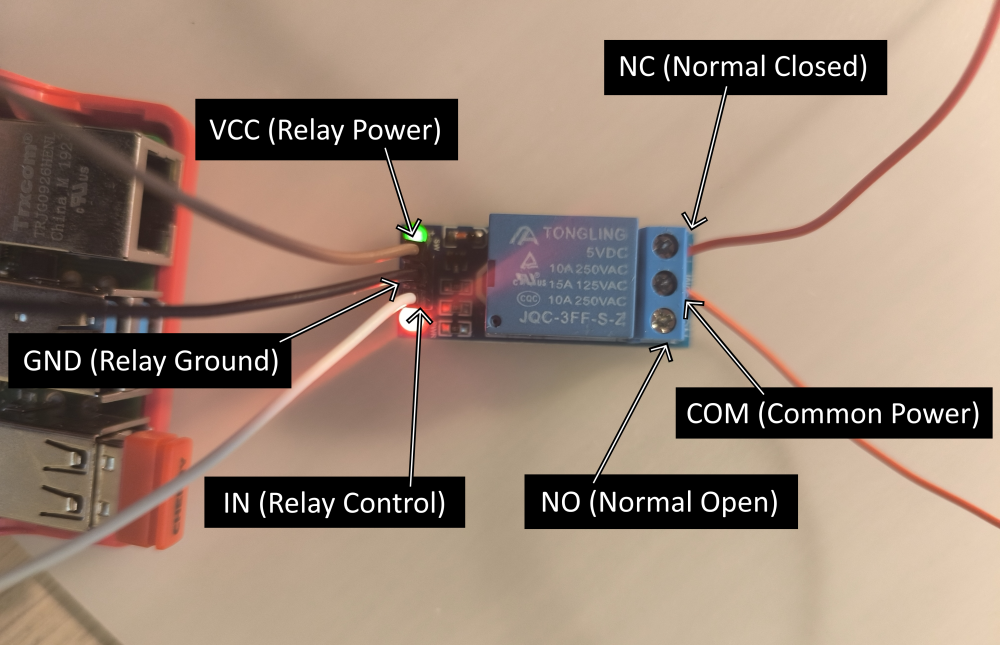

A Relay is connected as such:

In our programs, we chose the pin GPIO #23 for controls, but any other will do. As our Common Circuit (electromagnet) uses 5V, our Control Circuit (gpio) needs to be at a lower voltage (potential difference) in order to give the Relay some operation headroom. Thus, we went with the static 3.3V output rail. Alternatively a resistor of ~100 would have done the trick.

The relay toggles COM (Common Power) between NO (Normal Open, powered if relay is open = low flag on IN) and (Normal Closed, powered if relay is closed = high flag on IN). As we identify a high flag with magnet=on, we went with the NC port for the magnet circuit.

Boxed Solution

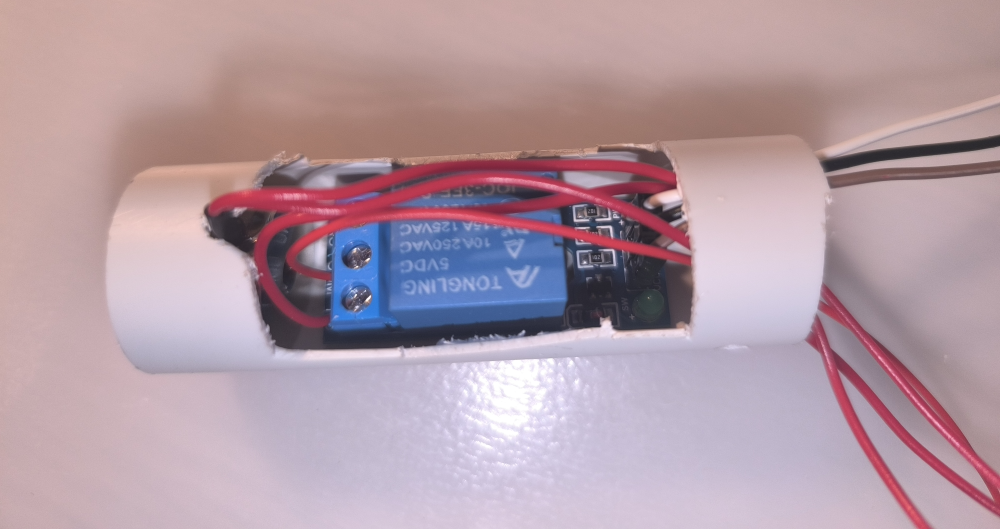

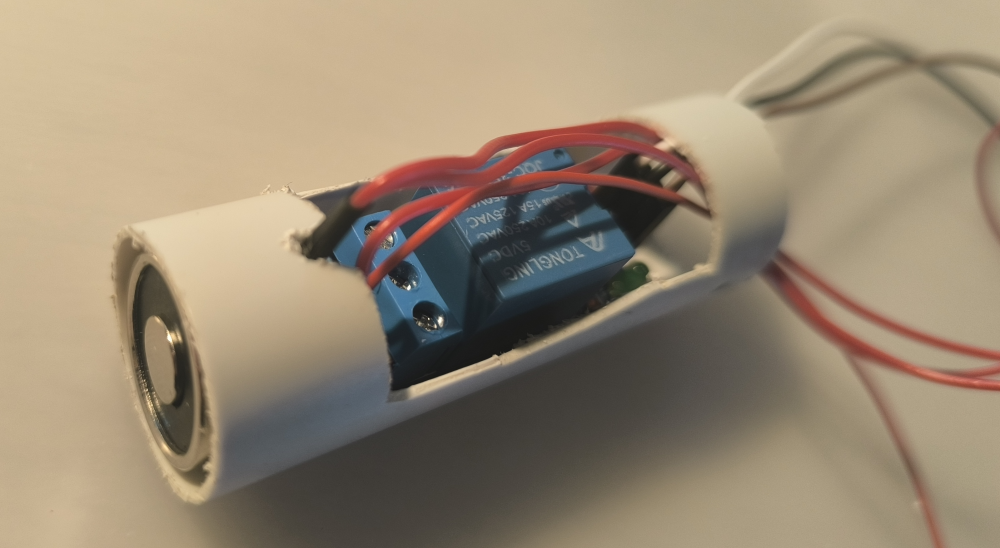

In order to make the entire solution more resistant against potential impacts, we decided to pack all hardware into a pvc pipe:

It looks like a pipe-bomb and probably should not be brought to an airport, but serves its purpose.
